Mapping and ablation on the non-coronary cusp for treating para-Hisian premature atrial contractions and atrial tachycardia

doi:10.3969/j.issn.1004-583X.2025.10.005

Abstract

Abstract:

Objective To evaluate the feasibility, safety, and effectiveness of a noncoronary cusp (NCC) approach to map and ablate premature atrial contractions (PACs) or atrial tachycardia (AT) arising from the para-Hisian region. Methods This retrospective study included 13 consecutive patients treated with radiofrequency ablation under CARTO 3 guidance at Qixingguan District People's Hospital and Guizhou Provincial People 's Hospital between January 2019 and April 2023. Intraoperative electrophysiologic study confirmed that the earliest atrial activation was located at or near the His bundle. Clinical characteristics and procedural data related to NCC mapping and ablation were analyzed. Results Para-Hisian PACs/AT displayed characteristic surface ECG findings. Target sites were within 5 mm of the His bundle. In all 13 patients, NCC mapping identified the earliest local atrial activation preceding the surface P-wave onset by (31.5±15.0) ms. Local electrograms were characterized by a bipolar signal with large A and small V, unipolar QS morphology, and absence of a His bundle potential. Ablation was successful in all cases with no complications observed. Conclusion Para-Hisian PACs/AT present with distinctive ECG features. Guided by these features, three-dimensional electroanatomical mapping with CARTO 3, combined with NCC mapping and ablation, is a safe and effective strategy.

Key words: premature atrial contractions, atrial tachycardia, noncoronary cusp, catheter ablation

CLC Number:

R541.7

Liu Zhenliang, Zhou Yangjie, Wen Wei, Li Wanneng, Xi Binwu, Zhao Xu, Liu Qifang. Mapping and ablation on the non-coronary cusp for treating para-Hisian premature atrial contractions and atrial tachycardia[J]. Clinical Focus, 2025, 40(10): 904-909.

Add to citation manager EndNote|Ris|BibTeX

URL: https://www.lchc.cn/EN/10.3969/j.issn.1004-583X.2025.10.005

https://www.lchc.cn/EN/Y2025/V40/I10/904

Figures/Tables 4

Tab.1 Baseline characteristics

病例	性别	年龄(岁)	心电图诊断	电生理诊断
病例1	男	50	房早	房早
病例2	男	60	房早	房早
病例3	男	51	房早	房早
病例4	男	74	室上性心动过速	房速
病例5	女	53	室上性心动过速	房速
病例6	女	54	室上性心动过速	房速
病例7	女	49	室上性心动过速	房速
病例8	女	67	房速	房速
病例9	男	42	房速	房速
病例10	女	66	房速	房速
病例11	女	45	室上性心动过速	房速
病例12	男	67	房速	房速
病例13	女	37	室上性心动过速	房速

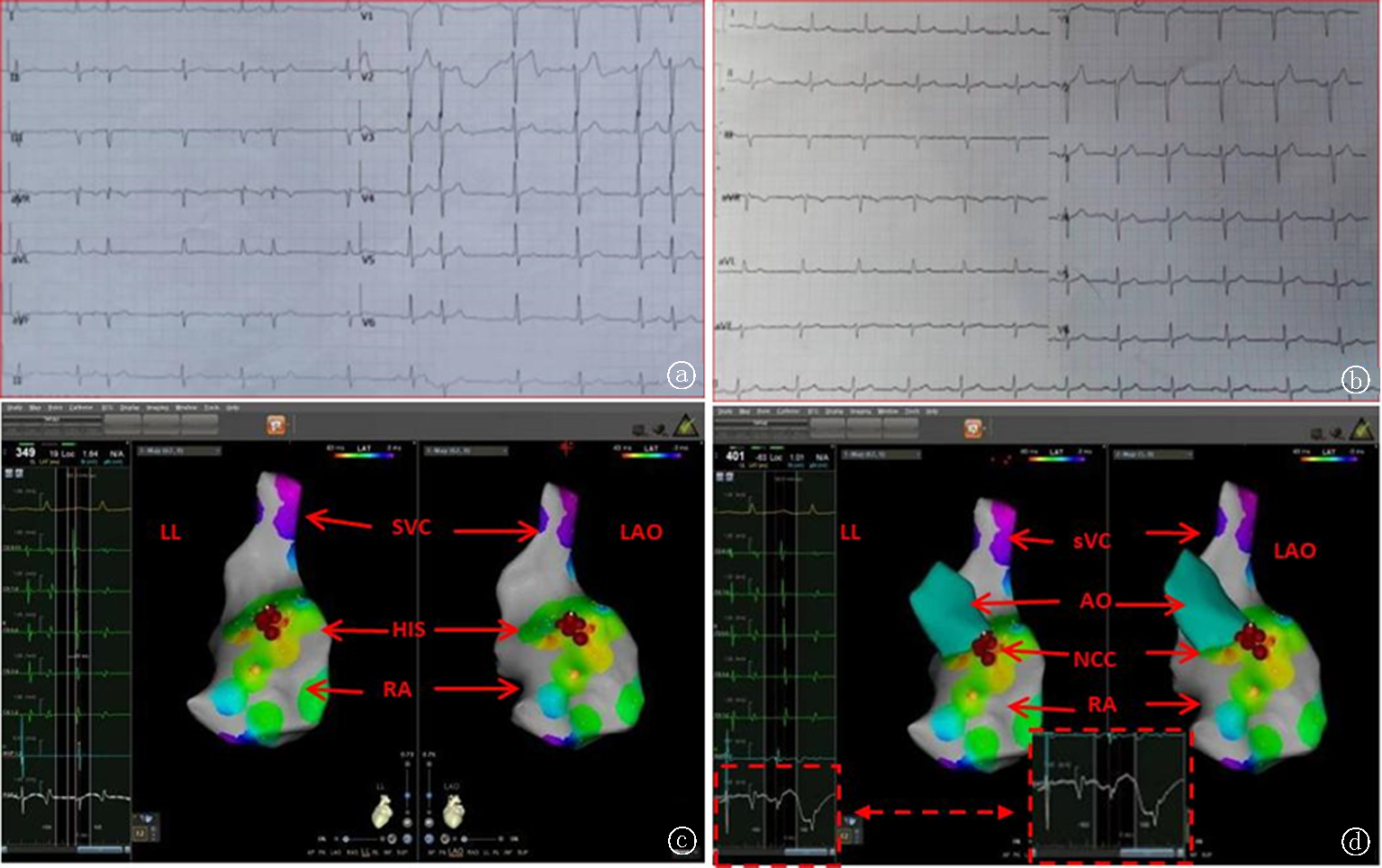

Fig.1 Successful ablation of premature atrial contractions originating near the His bundle region in the NCC a. Preoperative electrocardiogram: P waves are mostly negative/positive biphasic in lead V1 and inferior leads; upright in lead aVR; variable in lead I: low and flat, positive in lead aVL; b. Postoperative electrocardiogram; c. Right atrial mapping, left side is LL (left lateral), right side is LAO (left anterior oblique), yellow points indicate the His bundle, red point shows the earliest activation preceding the surface P wave by 56 ms; d. Fusion image of the aortic sinus and RA:Left side is LL, right side is LAO, yellow points indicate the His bundle, red points indicate the NCC (non-coronary cusp).Note: LL: left lateral

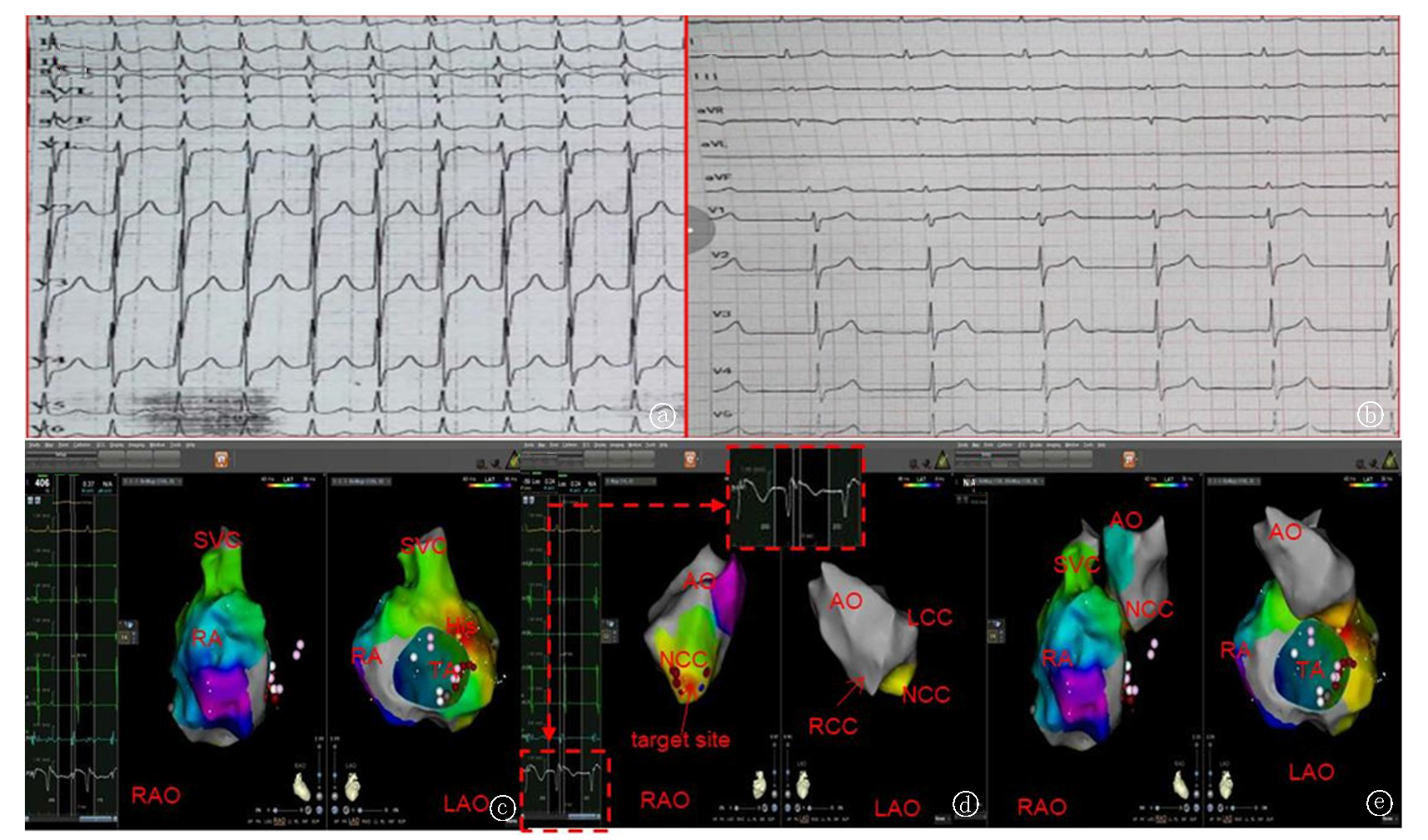

Fig.2 Successful ablation of atrial tachycardias originating near the His bundle region in the NCC a. ECG during atrial tachycardia: P waves appear negative or positive biphasic in lead V1 and inferior leads; upright in lead aVR; negative or positive in lead I, positive in lead aVL; b. ECG after ablation; c. Right atrial (RA) mapping: Left side is RAO (right anterior oblique), right side is LAO (left anterior oblique). Yellow points indicate the His bundle. Mapping near the His bundle septum showed an A wave preceding the surface P wave by 34 ms, but ablation did not terminate the atrial tachycardia; d. Aortic sinus mapping: Left side is RAO, right side is LAO. During atrial tachycardia, mapping showed the earliest local activation at the NCC (non-coronary cusp), preceding the surface P wave by 47 ms, and ablation was successful; e. Fusion image of the RA and aortic sinus: Left side is RAO, right side is LAO. Yellow points indicate the His bundle, red points indicate the earliest activation preceding the surface P wave at the NCC. Note: LCC: Left coronary cusp; RCC: Right coronary cusp; TA: Tricuspid annulus; AO: Aorta

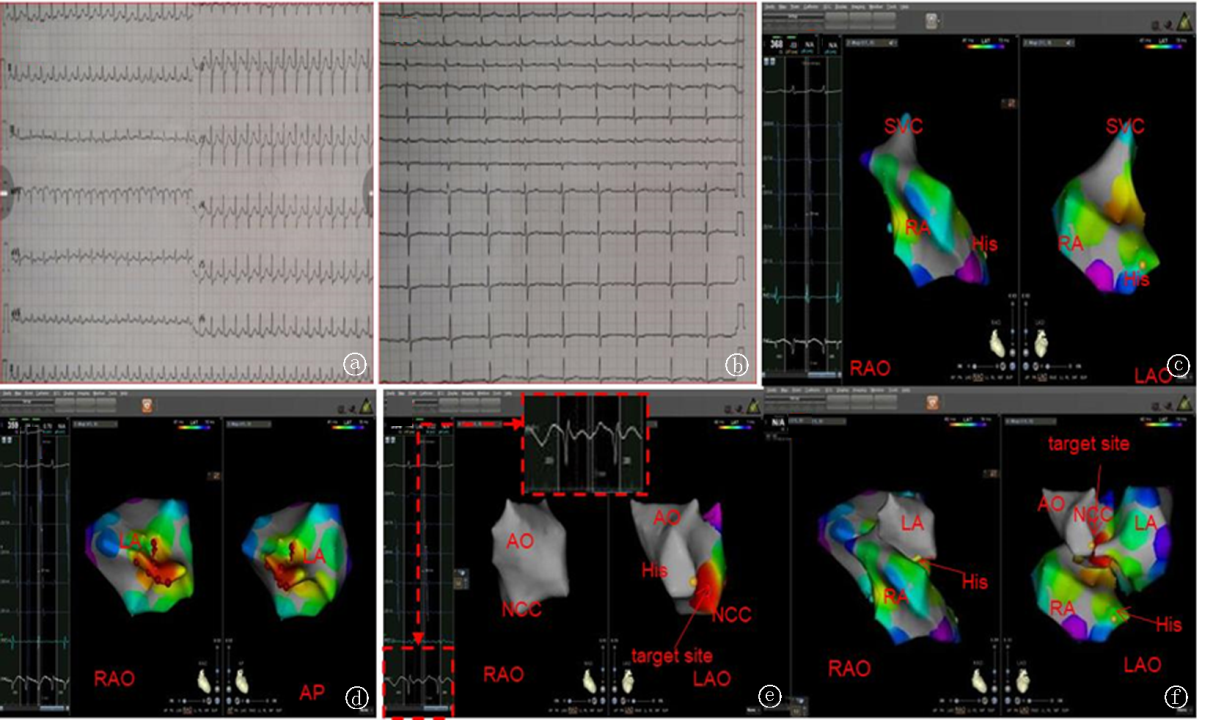

Fig.3 Successful ablation of atrial tachycardias originating near the His bundle region in the NCCA, but ineffective in the right atrium near the His bundle and the left atrium through the interatrial septum a. ECG during arrhythmia: P wave upright in V2-V3, AVL, RP > PR; b. EC after ablation; c. Modeling map of the right atrium: RAO on the left, LAO on the right, yellow is the His bundle, A wave leads the P wave by 51 ms on the interspace surface, ablation ineffective; d. Modeling map of the left atrium: RAO on the left, AP on the; puncture the interatrial septum, local potentials (red) were recorded in the anterior wall of the left atrium in the anterior interspace, which led the P wave by 26 ms, ablation ineffective; e. Modeling map of the aortic sinus: puncture the femoral artery, the aortic sinus was during the arrhythmia, indicating that the local excitation was the earliest to lead the surface P wave by 21 ms, ablation was successful; on the left is RA, on the right is LAO, the yellow dot is the His bundle, the red dot is the earliest to lead the surface P wave by 21Mms, discharge, rial tachycardia terminated; f. Modeling map of the aortic sinus, RA, and LA fusion: RAO on the left, LAO on the, yellow dot is the His bundle, red dot is the earliest to lead the surface P wave in NCC. Note: AP: Anterior-posterior position; RA: Right atrium; LA: Left atrium; AO: aorta
